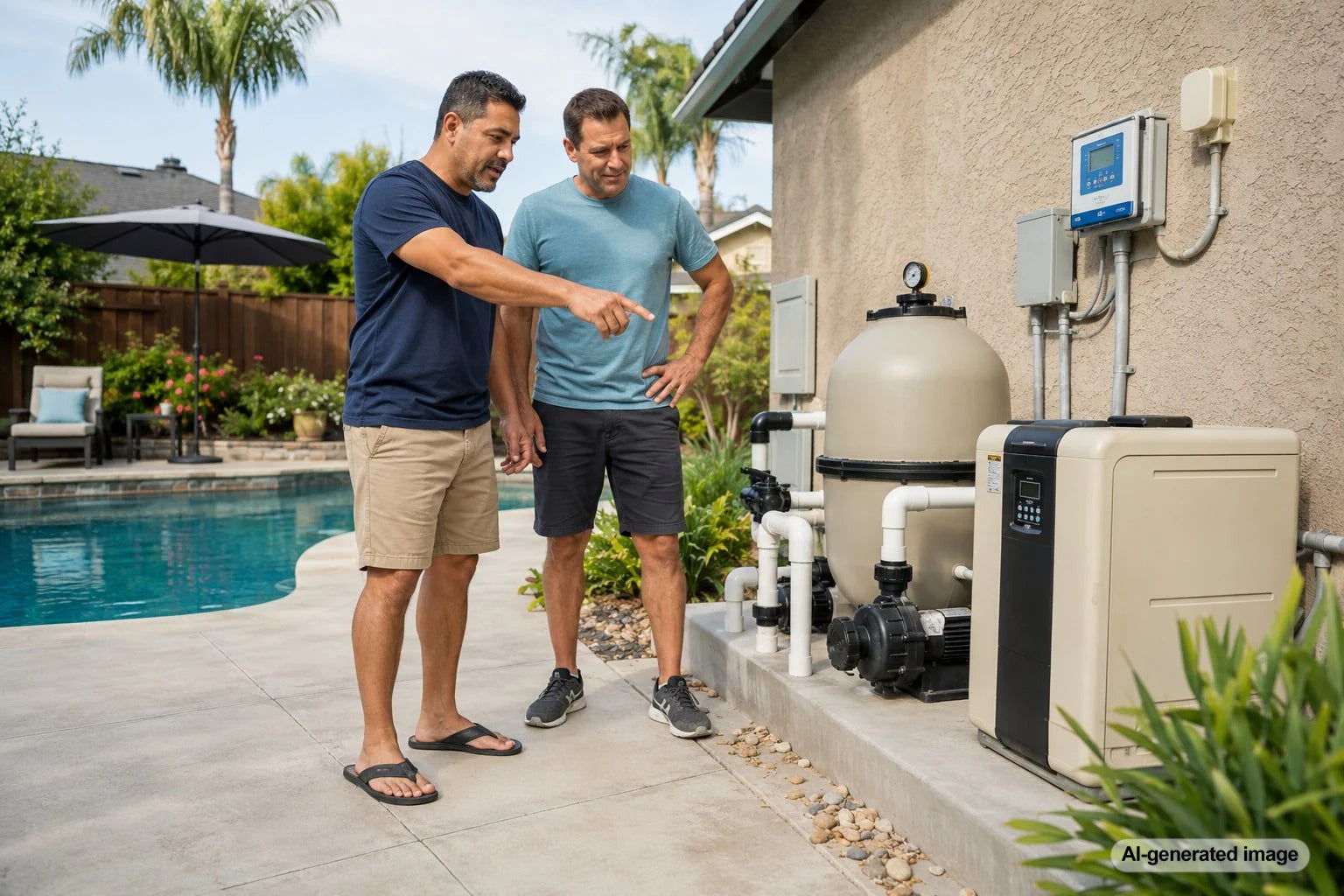

How to Read Your Pool Equipment Pad Like a Pro: A Homeowner's Field Guide to Pumps, Filters, Valves, and Warning Signs

The foundation of any confident pool care routine starts at the equipment pad. That cluster of pumps, pipes, valves, gauges, filters, heaters, and control boxes may look intimidating at first, but it is really the command center for your pool. Once you understand what each part does and what normal operation looks like, you can spot small changes before they turn into cloudy water, weak circulation, equipment strain, or an expensive service visit.

Reading your pool equipment pad like a pro does not mean repairing everything yourself. It means knowing how water moves, what each component is trying to tell you, and when a symptom points to something simple versus something that needs a pool professional. A few minutes of observation each week can give you a clearer picture of your pool's health than guessing from the water alone.

Start With the Water Path

The easiest way to understand the equipment pad is to follow the water. Pool water leaves the pool through suction points, usually the skimmer, main drain, spa drain, or a combination of those. From there, it travels through suction-side plumbing to the pump, then moves through the filter, heater, sanitizer, and return lines before flowing back into the pool.

Think of it as a loop. The suction side pulls water toward the pump. The pressure side pushes filtered water back to the pool. When you know which side you are looking at, symptoms make more sense. Air bubbles, a pump basket that will not stay full, or a pump that loses prime often point toward the suction side. High filter pressure, weak returns, or a dripping fitting after the pump may point toward the pressure side.

The Pump: The Heart of the Pad

The pump is usually the loudest and most active piece of equipment. Its job is to move water through the system. A clear pump lid lets you see the pump basket and the flow inside. When everything is working well, the basket area should look mostly full of water with steady movement. A small swirl can be normal, especially on variable-speed pumps running at lower speeds, but large air pockets or constant churning deserve attention.

Common pump clues include:

• A basket full of leaves or debris can restrict flow and lower pressure.
• A dry, cracked, or dirty pump lid O-ring can let air enter the system.
• Low pool water can cause the skimmer to pull air, making the pump surge or lose prime.
• A pump that sounds louder than usual may be struggling with restriction, air, worn bearings, or improper flow.

If you have a variable-speed pump, remember that low speed changes the way the pad looks and sounds. Lower flow can mean lower filter pressure and gentler return jets, even when the system is operating correctly. Before diagnosing a problem, check what speed the pump is running.

Valves Tell You Where the Water Is Going

Valves are the traffic directors of the pool pad. They control whether water is being pulled from the skimmer, main drain, spa, cleaner line, or other suction source. On the return side, they may control whether water goes back to pool returns, spa jets, waterfalls, deck jets, bubblers, or a pressure cleaner.

Many homeowners get nervous around valves because one wrong turn can change the whole system. The key is to learn what normal looks like. Take a clear photo of your valve positions when the pool is running properly. Label the pipes with weatherproof tags if they are not already marked. A simple photo can save you from guessing after service, storms, winterization, or a curious guest has moved a handle.

The Filter and Pressure Gauge: Your System's Dashboard

The filter removes debris and fine particles from the water. Sand, cartridge, and DE filters all work differently, but the pressure gauge on the filter gives you one of the best quick readings on the pad. The number itself is less important than your pool's clean baseline.

After the filter is cleaned or backwashed and the system is running at its normal speed, write down the pressure reading. That is your reference point. If pressure climbs noticeably above that baseline, the filter may be dirty, a valve may be partially closed, or water may be restricted after the pump. If pressure drops below normal, the system may not be getting enough water because of a clogged skimmer basket, clogged pump basket, low water level, suction-side air leak, blocked impeller, or a valve that is not open enough.

Do not rely on a gauge that is stuck, fogged, cracked, or unable to return to zero when the pump is off. A bad gauge can send you chasing a problem that does not exist. Replacing a worn gauge is often inexpensive, and it can make the rest of your troubleshooting much more accurate.

Multiport Valves, Cartridges, and Backwashing Clues

If your filter has a multiport valve, usually found on many sand and DE systems, the handle may include settings such as filter, backwash, rinse, recirculate, waste, and closed. Never turn a multiport valve handle while the pump is running. Doing so can damage internal parts and create confusing symptoms, including water bypassing the filter or returning dirty water to the pool.

Backwashing can help clean sand and DE filters, but more is not always better. Over-backwashing can waste water, dilute chemicals, and prevent some sand filters from building the slightly dirty filter bed that helps them catch finer particles. Cartridge filters are different; they are opened and cleaned manually rather than backwashed. If you recently cleaned a cartridge filter and pressure is still high, the cartridge may be worn, scaled, oily, or loaded with fine debris that rinsing did not remove.

Heaters, Sanitizers, and Extra Equipment

After the filter, water may pass through a heater, heat pump, salt chlorine generator, erosion feeder, UV system, ozone system, or automation-controlled valves. These components usually depend on proper flow. If flow is low, a heater may fail to fire, a salt system may show a flow warning, or a spa may heat slowly.

Attached spas and water features add another layer. A spa in pool mode may spill over into the pool, while spa mode usually isolates the spa so the pump pulls from and returns to the spa. If a spa drains down when the system shuts off, the issue may involve a check valve, valve actuator, or plumbing arrangement rather than a crack in the spa shell. A raised spa, tanning ledge, waterfall, or bubbler can also increase evaporation and make water level changes seem more dramatic during hot, windy, or dry weather.

What Pool Owners Often Miss

Small details often matter. A pump lid that is slightly loose can pull air without leaking water. A suction valve that is only partly open can make the pump sound strained. A filter pressure gauge may look normal at high pump speed but reveal a problem when compared to your usual setting. A check valve with a cloudy lid, stuck flapper, or rattling sound may explain water moving backward when the pump shuts off.

Also pay attention to the pad surface. A damp spot after rain is not meaningful by itself, but a recurring wet area under a union, pump seal, heater manifold, filter clamp, or chlorinator can point to a slow leak. White crust around fittings may indicate dried mineral residue from repeated drips. Rust stains under a heater or pump motor deserve a closer look.

Common Mistakes When Reading the Equipment Pad

One common mistake is changing several things at once. If you clean the filter, move valves, adjust pump speed, and add chemicals all in the same hour, it becomes harder to know what fixed or caused the issue. Make one change, observe the result, and keep notes.

Another mistake is assuming every pressure change means the filter is dirty. High pressure usually means resistance after the pump, but low pressure can be just as important because it may mean the pump is starved for water. Weak return flow with low pressure is a different clue than weak return flow with high pressure.

Homeowners also overlook seasonal changes. Heavy pollen, nearby landscaping, storms, construction dust, sunscreen load, and algae cleanup can all load a filter faster than usual. In hot climates, evaporation and equipment run time may change noticeably between spring and peak summer. In screened enclosures, less debris may reach the pool, but airflow and humidity still affect evaporation and equipment behavior.

When to Call a Pool Professional

Call a qualified pool professional if the pump repeatedly loses prime, the breaker trips, the motor becomes extremely hot, a filter tank or clamp appears damaged, a heater leaks or smells unusual, or water is spraying from pressure-side plumbing. Electrical components, gas heaters, cracked pressure vessels, and underground plumbing problems are not good places to experiment.

You should also get help when the same symptom keeps returning after basic cleaning and inspection. A clogged impeller, failing pump seal, damaged filter internal, bad valve actuator, suction leak, or plumbing restriction can mimic simpler problems. A professional can pressure test lines, inspect internal parts, and confirm whether the issue is equipment-related, plumbing-related, or tied to pool structure.

The Bottom Line

Your pool equipment pad is not just a collection of parts. It is a set of clues. The pump shows whether water is moving smoothly. The valves show where the water is coming from and where it is going. The filter pressure gauge shows how hard the system is working. The sounds, drips, bubbles, and flow patterns help you decide whether something is routine or worth investigating.

Start by documenting normal. Take photos, record clean filter pressure, learn your valve positions, and spend a few minutes observing the pad when the pool is running well. Once you know your pool's normal behavior, reading the equipment pad becomes much less intimidating and much more useful. That is how homeowners move from guessing to making smarter, calmer pool care decisions.
