How to Understand Pool Plumbing Without Being a Pool Pro: A Simple Guide to Water Flow, Valves, and Troubleshooting

I see it often: a pool owner walks over to the equipment pad, looks at the maze of pipes and valves, and immediately assumes pool plumbing is too complicated to understand. It may look intimidating, but most residential pool systems follow the same basic circulation loop. Once you learn where the water enters, what happens at the equipment pad, and how it returns to the pool, you can make better maintenance decisions without becoming a pool pro.

You do not need to memorize every fitting or rebuild a pump. The practical goal is to understand the path of the water well enough to recognize normal operation, describe a problem accurately, and avoid changing a valve that should have been left alone.

Start by Following the Water

The easiest way to understand pool plumbing is to stop thinking about individual pipes and picture one continuous circulation loop:

• Water enters through the skimmer, floor outlets, or a dedicated cleaner line.
• Suction plumbing carries it toward the pump.
• The pump pulls the water in and pushes it forward.
• The filter removes suspended debris.
• A heater, salt cell, chlorinator, or other equipment may treat the water.
• Return plumbing sends the water back through the pool jets.

The pump is the dividing point between the two main sections of the system. Everything before the pump is generally called the suction side. Everything after the pump is the pressure side, return side, or discharge side.

The Suction Side: From the Pool to the Pump

The suction side operates under a vacuum created by the pump. Its job is to bring water from the pool to the equipment pad.

Most pools draw water from one or more of these locations:

• Skimmer: Pulls surface water into a basket that catches leaves, insects, and larger debris.
• Floor outlets: Often called main drains, although their everyday purpose is circulation rather than emptying the pool.
• Dedicated suction cleaner line: Supplies suction to certain automatic pool cleaners.
• Spa suction: Draws water from an attached spa when the valves are set to spa mode.

The suction pipes usually meet at one or more valves before entering the front of the pump. These valves determine whether the pump draws from the skimmer, floor outlets, spa, or a combination of sources.

A useful distinction is that suction-side leaks often pull air into the system instead of dripping water onto the ground. Warning signs can include bubbles under the clear pump lid, a pump that struggles to prime, surging water in the pump basket, or air bubbles blowing from the return jets.

Before assuming an underground pipe has failed, check the simple possibilities. A low pool level can allow the skimmer to pull air. A loose pump lid, dirty lid O-ring, open pump drain plug, or poorly sealed fitting can create similar symptoms.

The Pump: Where Pulling Becomes Pushing

The pump creates circulation. Water enters through the suction port, passes through the pump basket, moves through the impeller, and exits under pressure.

The pump basket is a second line of defense after the skimmer basket. It catches larger debris before that debris reaches the impeller. A basket packed with leaves can reduce flow, make the pump sound strained, and contribute to weak return pressure.

A healthy pump basket should normally remain mostly full of water while the system is running. A small air pocket may be normal on some systems, but a large or growing pocket deserves attention.

Never open the pump lid while the pump is operating. Turn off power first, relieve pressure according to the equipment manufacturer's instructions, and make sure the system cannot restart unexpectedly.

The Filter and Other Pressure-Side Equipment

After water leaves the pump, it enters the pressure side of the system. The filter is usually the first major component. Residential pools commonly use cartridge, sand, or diatomaceous earth filters.

A pressure gauge near the top of the filter shows how much resistance the system is experiencing at that point. The most useful number is not a universal target. It is your own filter's clean starting pressure after proper cleaning or servicing.

If pressure rises significantly above the clean baseline, the filter may be dirty or flow may be restricted after the pump. If pressure is unusually low, the pump may not be receiving enough water because of a clogged basket, closed valve, blocked suction line, low water level, or suction-side air leak.

After filtration, water may pass through a heater, heat pump, chlorinator, salt chlorine generator, check valve, or chemical automation system. The exact sequence varies, but these components belong downstream of the pump because they require pressurized water flow.

The Return Side: Sending Water Back to the Pool

Return plumbing carries filtered water from the equipment pad to the pool. The visible return jets in the pool walls are the final outlets in the circulation loop.

Return jets do more than send clean water back. Their direction affects surface movement, debris collection, chemical distribution, and circulation through corners, steps, tanning ledges, and shallow areas.

If one return jet is weak while the others are strong, the issue may be limited to that branch, fitting, or eyeball opening. If every return is weak, look for a system-wide flow restriction such as a dirty filter, clogged basket, incorrect valve position, blocked impeller, or low pump speed.

Pressure-side leaks tend to behave differently from suction leaks. Because water is being pushed through these pipes, a failure may produce wet soil, water at the equipment pad, unexplained puddling, or water loss that becomes more noticeable while the pump is running.

How to Read Pool Valves Without Guessing

Pool valves redirect or restrict water. Common styles include two-way shutoff valves and three-way diverter valves.

Many diverter valves have an OFF marking on the handle. The OFF section generally points toward the pipe that is blocked, not the pipe receiving the most flow. Handle designs vary, so confirm the valve's operation before moving it.

Use a phone to photograph every valve before changing anything. That simple habit gives you a reliable way to restore the original setup.

Move valves slowly and avoid completely blocking the pump's incoming or outgoing flow while it is running. Closing the wrong combination can starve the pump, create excessive pressure, interrupt heater flow, or send water somewhere you did not intend.

Pool and Spa Valve Positions

An attached spa makes the plumbing more complex because the system may share a pump, filter, and heater. In pool mode, valves typically draw from the pool and return water to the pool. In spa mode, they draw from the spa and return to the spa.

Some systems use a spillover setting that returns part of the water to the raised spa so it flows into the pool. Check valves may also be installed to prevent elevated spa water from draining backward when the pump shuts off.

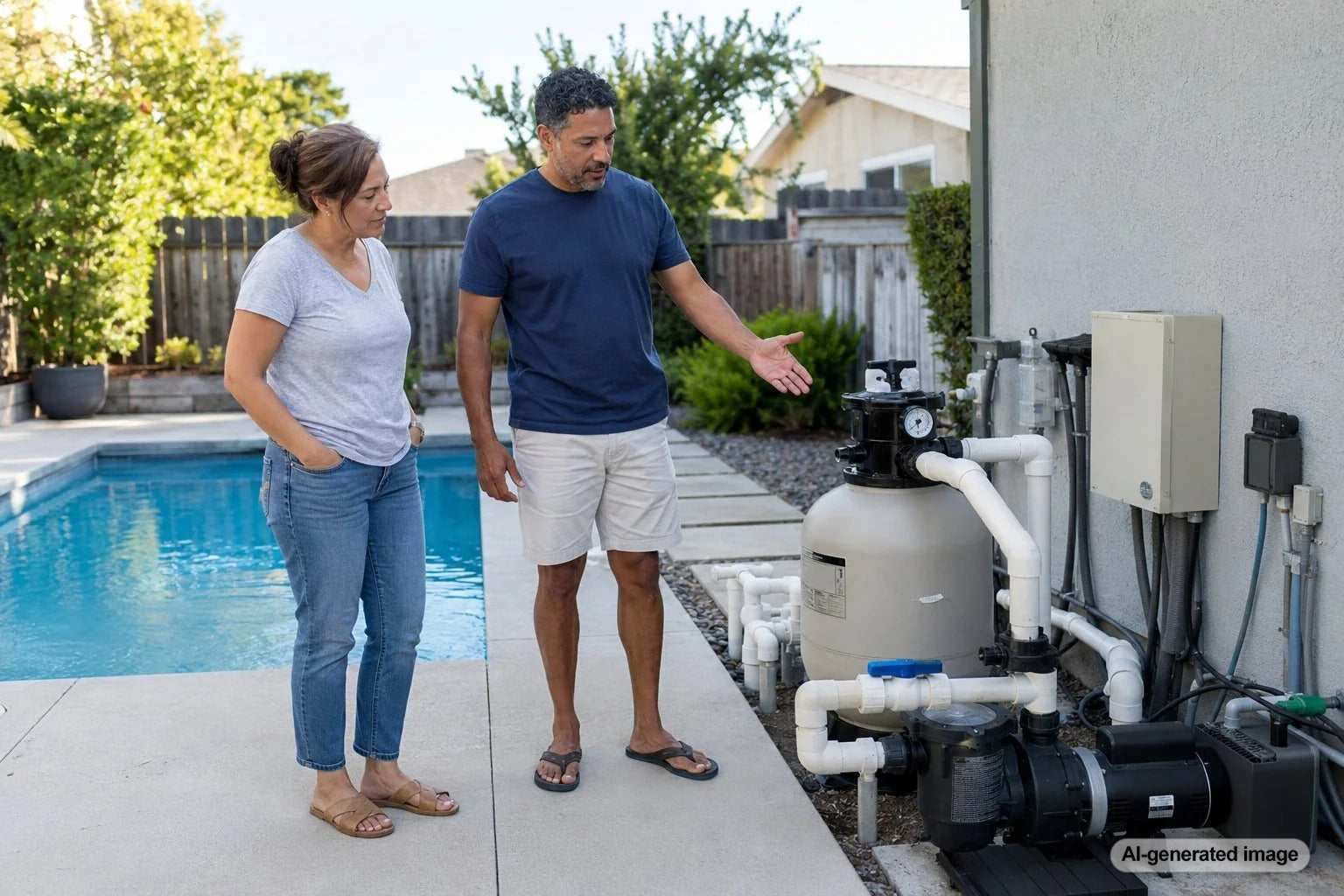

Label the Equipment Pad

A few waterproof labels can turn an intimidating equipment pad into a readable map. Identify lines such as:

• Skimmer
• Main drain or floor outlet
• Cleaner
• Pool suction
• Spa suction
• Pool return
• Spa return
• Water feature
• Waste or backwash

Do not rely on pipe position alone. Builders route plumbing differently, and two pipes that appear to travel in the same direction may serve completely different functions.

To identify an unlabeled line, change only one valve at a time while observing the pool. Watch for changes in skimmer pull, return flow, spa level, cleaner movement, or water-feature operation. Return the valve to its starting position before testing another line.

Common Plumbing Clues and What They May Mean

• Bubbles in the pump basket: Low water level, loose pump lid, damaged O-ring, suction-side fitting leak, or restricted skimmer flow.
• Air from the return jets: Air entering before the pump, water turbulence during startup, or a system that has recently been opened for service.
• High filter pressure: Dirty filter, closed return valve, blocked return line, undersized return opening, or a restriction after the pump.
• Low filter pressure and weak returns: Clogged baskets, obstructed impeller, suction blockage, air leak, low pump speed, or a valve that is partly closed.
• Spa level drops when the pump shuts off: A leaking check valve, incorrect valve position, or water moving backward through shared plumbing.
• Water loss is worse while the pump runs: A pressure-side plumbing leak, leaking filter component, waste-line problem, or water escaping from a feature.

These are clues, not final diagnoses. One symptom can have several causes, which is why observing when the problem occurs is so valuable.

Know When to Stop Troubleshooting

Basic observation and labeling are homeowner-friendly. Cutting pipes, opening electrical equipment, repairing gas heaters, pressure testing underground lines, and modifying safety-related suction plumbing are jobs for qualified professionals.

Call for help when the pump repeatedly loses prime, the filter housing leaks or appears damaged, pressure rises rapidly, buried plumbing is suspected, a spa drains unexpectedly, or water appears near electrical equipment.

The Bottom Line

You do not need professional training to understand the basic logic of your pool plumbing. Follow the water from the skimmer to the pump, through the filter and optional equipment, and back through the returns. Learn which pipes are on the suction side, which are on the pressure side, and what each valve controls.

Once you can read that circulation loop, the equipment pad stops looking like a random collection of PVC. It becomes a working map that can help you maintain better flow, catch warning signs earlier, and have much more productive conversations with a pool professional.
